Specifications

Material: air space aluminium T651, AW-7075, AlZn5MgCu
Height: 6.00 mm
Weight: 280 gramms per ski with single standard heel
290 gramms per ski with double heels
Threads: cold pressed, not carved

Mounting hints and tricks​

The most important for mounting a telemark binding on skis is the right setting of the pin line. But start with the center line, this is the middle line of the ski and should be marked about 50 cm long around the binding mounting spot. The pin line of the binding is corresponding with the chord center on the ski. The chord center is the full length of the ski (measured trom tip to tail including radius; means from highest point on tip to highest point on tail) divided by 2 (i.e. 193 cm:2 = 96.5cm). This length will be marked on the ski from tip or tail and means it is the middle of the ski. Common bindings call this the toe top. It is a classical formula and works on all kind of ski types. For fine tuning you can set up the chord center up and down by 6mm  (see more about pin lines). After marking the chord center on the ski you can set the plate now according to the binding type pin line with the side markings of the plate on the ski. Use the length wise carves to place the plate exactly. Fix this position with a hand clamp slightly and control all measurements again.  Mark the holes now with a fat pen so you can set the puncher exactly in the middle of the round marks and you have an easy and exact mounting of the tele booster plates. The heel plate has a distance of 8cm from the main plate and fits then most of the shoe sizes (36-46, ) Also here the help of a hand clamp is very usefull to set the heel piece on the right place… you can even punch directly into the hole if you are experienced enough. Always use a wax scraper on the surface of the ski to avoid any scratches.

steel inserts or one way wood screws..?

This is a main question and should be decided latest after you have drilled the holes for the plates. I have best experience with the quiverkiller.com steel inserts made in Denver, Colorado/USA. To mount the telebuddy plates directly with steel inserts is allowing you to change the plate position any time for different bindings or to tune up your ski performance for hard & groomed piste conditions or back country free skiing. Any mounting of the plates with wood screws will tear a bit on the top sheet construction and if you  tight up the screw the second time in the same hole/thread it will not hold as good as the first time … thats why I strongly recommand you to mount the plates with the quiverkiller.com inserts. This inserts are threaded in and glued in with epoxy and experts are saying that this connection is twice as strong as with the regular inserts. Also it helps for skis which have no good material in the center of the ski where you want to place the plates (mostly around the center hole line).

You will get the M5 inox screws to mount the plates onto the inserts for free… just let me know when you order… the inserts you may order directly with www.quiverkiller.com… you would need 4 pieces by one front plate, 8 for a pair of skis… the heel pieces can be fixed with the ordinary screws because you can adapt them with the inner nuts easy to different positions and don’t need this special materials…

Montage Hinweise und Tricks

Für die Montage einer Telemark Bindung sind die Pin Lines massgebend. Man startet aber mit der center line, das ist die Mitte des Skis auf der Querachse und es genügt, diese etwa 50 cm um die Bindungsmontage anzubringen. Die Pin Line der Bindung entspricht auf dem Ski dem Chord Center. Der Chord Center ist die Skimitte auf der Längsachse und entspricht bei allen Bindungen der Schuhspitze (nicht der Schuh Mitte). Dazu wird die Gesamtlänge des Skis über Spitze und Ende (vom höchsten Punkt zum höchsten Punkt) gemessen und dann durch 2 geteilt (z. 193 cm:2 = 96.5cm). Diese Länge wird dann von der Skispitze her nach hinten auf den Ski abgemessen und bildet mit einer Linie quer dazu den Chord Center. Diese klassische Formel funktioniert auf allen Skitypen und wer will kann diesen Punkt feinjustieren mit Hilfe der Längslöcher (siehe Pin Lines). Ist der Chord Center auf dem Ski markiert, kann die Platte sehr gut mit den seitlichen Markierungen der Pin Lines genau auf dem Ski ausgerichtet werden. Auf der Längsachse gibt es ebenfalls Markierungen, damit die Platte genau gesetzt werden kann. Mit einer Schraubzwinge kann die Position fixiert werden, um danach die Bohrlöcher zu markieren. Zuerst die Schraubzwinge nur leicht ansetzen und danach nochmals die Position der Platte überprüfen und eventuell nach korrigieren. Mit einem dicken Filzstift können nun alle Löcher auf dem Ski abgebildet werden. Die grossen Markierungen sind danach einfach mit dem Körner in der Mitte zu treffen und garantieren eine schnelle und exakte Montage. Wird das Fersenteil mit 8 cm Abstand zur tele booster plate montiert, können Schuhgrössen von 36 bis 46 darauf stufenlos eingestellt werden. Bei der Montage des Fersenteils ist ebenfalls eine Schraubzwinge sehr praktisch und hilft, das Fersenteil schnell und trotzdem genau zu montieren. Geübte Handwerker können die Löcher auch direkt mit dem Körner durch die Platte markieren.Beim Gebrauch einer Schraubzwinge unbedingt einen Waxschaber zwischen den Skibelag und die Auflage der Zwinge legen, damit keine Kratzer entstehen.

Mehrfach verwendbare Stahl Einsätze oder Einweg Holzschrauben...?

Diese Frage muss umittelbar nach dem Bohren der Löcher für die Platte geklärt werden. Willst du die Platte für verschiedene Bindungen brauchen oder die Pinline für hartes Pistenfahren nach vorne und fürs freeriden nach hinten schieben..? Ich habe sehr gute Erfahrungen mit den Stahl Inserts von Quiverkiller aus Denver Colorado. Diese Inserts sind Stahlhülsen mit Innengewinde M5 und halten doppelt soviel Zug aus wie herkömmliche Holz Montageschrauben. Sie werden mit einem Gewinde und Epoxyharz eingeleimt. Die Montageschrauben für die Platten gibt es gratis dazu, wenn du es beim bestellen erwähnst… die Inserts kannst du selber bestellen bei www.quiverkiller.com. Sie eignen sich auch sehr gut für Reperaturen von losen oder ausgerissenen Schrauben an Skis und Boards… Du brauchst pro Frontplatte 4 Stk, 8 für ein Paar Skis… die Fersenplatten können mit den Holzschrauben montiert werden, da die Fersenplatte leicht auf verschiedene Positionen eingestellt werden kann ohne die Befestigungsschrauben zu lösen…

Mehrfach verwendbare Stahl Einsätze oder Einweg Holzschrauben...?

Diese Frage muss umittelbar nach dem Bohren der Löcher für die Platte geklärt werden. Willst du die Platte für verschiedene Bindungen brauchen oder die Pinline für hartes Pistenfahren nach vorne und fürs freeriden nach hinten schieben..? Ich habe sehr gute Erfahrungen mit den Stahl Inserts von Quiverkiller aus Denver Colorado. Diese Inserts sind Stahlhülsen mit Innengewinde M5 und halten doppelt soviel Zug aus wie herkömmliche Holz Montageschrauben. Sie werden mit einem Gewinde und Epoxyharz eingeleimt. Die Montageschrauben für die Platten gibt es gratis dazu, wenn du es beim bestellen erwähnst… die Inserts kannst du selber bestellen bei www.quiverkiller.com. Sie eignen sich auch sehr gut für Reperaturen von losen oder ausgerissenen Schrauben an Skis und Boards… Du brauchst pro Frontplatte 4 Stk, 8 für ein Paar Skis… die Fersenplatten können mit den Holzschrauben montiert werden, da die Fersenplatte leicht auf verschiedene Positionen eingestellt werden kann ohne die Befestigungsschrauben zu lösen…

Mounting a Meidjo large or a 22designs Outlaw NTN X large

These large sized bindings need an extra heel piece for bigger shoe sizes… on the small Meidjo Binding the shoe size norm starts with Mondopoint 22.5 to 26 and on the Outlaw with 23 to 26.0 for Scarpa & Crispi boots and 23 to 25.5 for Scott & Garmont boots… the small bindings of each type can be mounted with the standard heel piece… the Meidjo needs for the intermediate preloader piece a small nut in the first heel piece (small and large)… the Outlaw NTN X small works fine with the standard heel piece…

 single heel versions above

Two short heel pieces are needed for all shoe sizes above 26.5 – 31 (Meidjo) and above 26.0 (Outlaw with Scott & Garmont), 26.5 (Outlaw with Scarpa & Crispi) because then the standard heel piece is not enough long for the mounting of the heel… for Meidjo add a nut in the first heel piece… the second heel piece will be placed according to the shoe size…

double heel versions below

… both bindings creates big forces from the heels and they need to be fixed from slot hole 6 backwards (see drawing below, green power square) or in a middle position (red power square with additionl screw) where you can shift to both sides… your choice..

beide Bindungen erzeugen grosse Kräfte an der Ferse und sollten deshalb vom Längsloch 6 rückwärts benützt werden (siehe Zeichnung unten grünes Kräfte Viereck… will jemand auf beide Seiten verschiebbar bleiben kann auch das rote Kräfte Viereck für die Bohrlöcher verwendet werden (aber mit einer 5. Schraube)

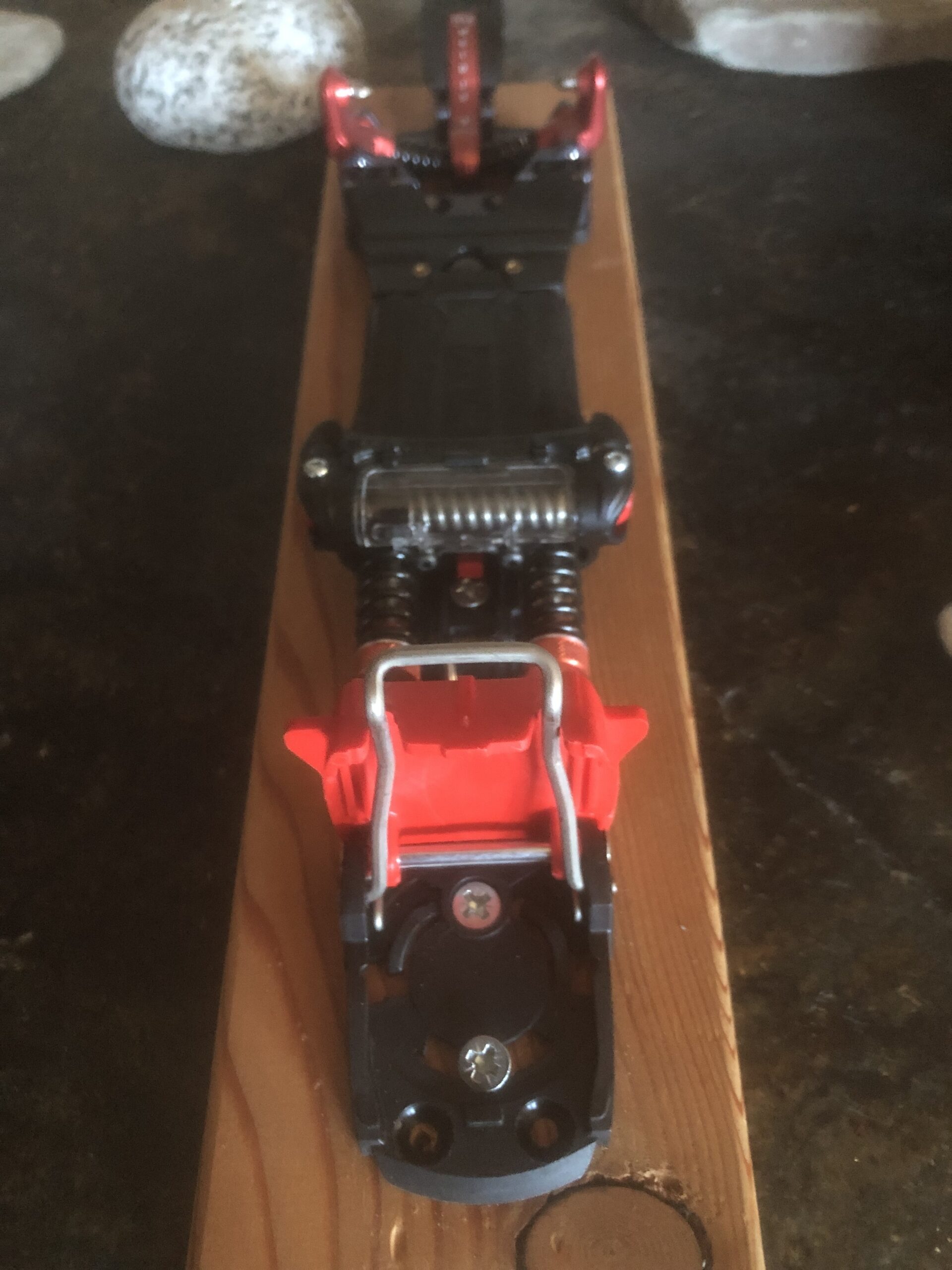

Mounting a TTS Telemark Tech System

The TTS is located on pinline 1 and slot hole one power square… this binding produces a lot of heel resistance due to the construction (2 front pieces) and it is necessary to mount if different. See the different power squares on the drawing below… use for the TTS the green power square… if you want to be able to use with the same drilling holes the Meidjo, Outlaw and Rottefella Freeride, then use the red power square… in this case give the plate an additional back screw (marked with red cross).
Die TTS Bindung ist auf pinline 1 und den Längslöchern 1 mit dem Kräfteviereck positioniert. Diese Bindung erzeugt enormen Fersendruck (da sie zweiteilig ist) und es ist deshalb nötig, die Bohrlöcher umgekehrt zu nützen. Nachfolgend einige Möglichkeiten zur Befestigung: für die TTS sollte man das grüne Kräfteviereck benützen… wenn man aber mit den gleichen Bohrlöchern auch eine Meidjo, Outlaw oder Rottefella Bindung fahren will, kann man das rote Kräfteviereck nützen… in diesem Fall sollte die Platte mit einer 5. Schraube im letzen Bohrloch zusätzlich befestigt werden (markiert mit rotem Kreuz).

Mounting a Rottefella NTN Freeride

The Rottefella binding has a stable base but is also located on the back of the plate… if you don’t use it with other brands then fix it also on the 6 slot hole (green power square)…
Die Rottefella Freeride hat eine stabile Basisplatte aber sie ist auch im hinteren Teil der Platte montiert… wenn keine andere Bindung gefahren wird dann montiert die RF auch auf dem grünen Kräfte Viereck…

Mounting a 7TM

This binding is to be released by this winter and it should come with a stable base and it is located anyway on slot hole 6 😉
Die neue 7TM mit tech toe sollte diesen Winter auf den Markt kommen und ist schon im letzten (6ten) Loch positioniert…

Mounting a Bishop BMF-R/3

Bishop bindings are using the 6 hole schemata from 22 designs… please check their website for the mounting of the bindings… when you do like you are told there (www. bishopbindings.com), you can then place the telebuddy plates on top of the schemata sheet (use template front right screw marked with :. or … and you have the position for the telebuddy plates… place it on the center line of the ski, punch and drill on the slut holes Nr. 6 (last hole against the back of the plate)… Bishop does not use anymore the classical pin line and goes from the mid of shoe to the front…

If you have already a telebuddy NTN/NTTN plate drilled on your skis shift it to pin line Nr. 6… there you are according to Bishop if you measure from “back to front”.

Die neue Generation Bishop Bindungen benützen das gleiche Bohrlochschema wie 22designs… die Bindungen werden neu an der Schuhmitte nach vorne gemessen (unbedingt das video auf bishopbindings.com schauen)… alle Skis haben diesen Standard markiert und man kann das beigelegte Schema leicht auf dem Ski anbringen… darauf kann man die Telebuddy Platte legen (Bohrloch für die obere rechte Schraube ist markiert mit :. oder …) und die Platte kann montiert werden (die letzten Schlitzlöcher gegen hinten benützen, Nr. 6)

Wenn Du schon eine NTN/NTTN telebuddy plate montiert hast, kannst Du sie auf the pin line Nr. 6 schieben und entsprichst damit der Schuhsohlen Methode von Bishop.

Mounting a Kreuzspitze Telealp Binding

The “bello” italian Kreuspitze binding is using the G3 template with 6 holes. This template is already mirrored on the 7 hole 75mm+NTN plate, but only with 4 holes… the binding body is tuned to have the less material possible… that leads to very special mounting screws for this binding, which have to be produced specially… therefore the higher price on the screw sets… to put the binding on the right pinline use line 2 and the hole schemata of 3 (3 points marking on the hole).

Kreuspitze Telealp Bindungen benützen das G3 Bohrschema mit 6 Löchern… 4 davon findet man schon auf der 75mm+NTN Platte und kann die Bindung damit montieren… der überaus schlanke Bindungsunterteil ist so genau gefräst, dass nur spezielle Schrauben dazu passen. Diese muss ich extra abdrehen lassen, weshalb dieser Schraubensatz im Shop auch teurer ist…

Die Platte wird mit der pinline 2 montiert und man benützt das Lochbild 3 (markiert mit 3 kleinen Punkten)

2nd ski kit

Use the booster base plate as a 2nd ski kit and mount it on your favorite skis… you can use with one binding different skis… this is why you get 2 sets for a better price… if you take 3 or more sets the price goes down again…

Der Gebrauch der Booster Base Plate als zweite Grundplatte auf einem anderen Ski ist ein weiterer Vorteil der Telemark Platte… wer schon von Anfang weg die Idee hat, eine Bindung für mehrere Paar Ski zu kaufen, der bekommt 2 Stück aufs Mal günstiger… Wer mehr als drei Stück bestellt, erhält die Platten nochmals zu einem besseren Preis…
Telemarkbindung-Powderski-platte

Power square

The central fixations with the appropriated side length slots has 7 positions (the NTN/low tech version has only 6 positions)… all positions are corresponding with the individual pin lines of the different tele bindings…the 4 fixation points are creating a small power square where all the forces of the interface of ski and binding are concentrated … due to the small distances all forces are hold back in this square which is very firm fixed to the ski… this guarantees an unchanged flexing character of your skis…The center line of skis can be sometimes not be made for the fixation of screws (soft core)… you feel it and you see it when you drill the holes… in such case you can create the power square by using only the side slot holes but in front and back (means hole 1 and 6/7) on both sides of the plates.

Kräfteviereck

Die zentrale Befestigung mit den Längslöchern kann auf 7 verschiedenen Positionen (bei der NTN/low tech Version sind es 6 Positionen) eingestellt werden… die Positionen entsprechen der jeweiligen Pin Line der verwendeten Bindungen… das ergibt 4 verschiebbare Befestigungspunkte auf kleinstem Raum… diese konzentrierte Befestigung lässt den Ski in der Durchbiegung ungehindert arbeiten und minimiert die Gefahr ausgerissener Schrauben massiv.

Die Skimitte ist bei manchen Skis nicht für eine Befestigung von Schrauben konstruiert (weicher Kern)… man spürt und sieht es sofort beim bohren der Löcher… in diesem Fall einfach die nur die äusseren Längslöcher in Loch 1 und 6/7 nützen…

Pin lines

To adapt the different bindings with its unique pin lines to the skis you simply drill the holes on each slot on the same positions… means for binding 4 you are using the 4. hole of each slot line… if you change your bindings you can now easy unscrew the 4 ski screws, shift the plate on the ski to the new position and thight it again… of course the plate is not in the same position again, but the ski holes are… this multiple adaption is perfect for rental shops, the customer can ride the same ski with different bindings and figure out his best set up… For sure you can use it also to shift the pin line forwards or backwards from the original line by steps of 6mm to influence your edge power more in tip or tail according to to your personal needs …During the last year some manufacturers brought new bindings out on the market by using the same templates… therefore combinations are possible of 75mm and NTN binding types… please look carefully in the list of the two different plates for the relevant pin lines..;-)

Verschiedene Bindungen haben verschiedene Pin Lines definiert… diese spiegeln sich in den entsprechenden Längslöchern und können damit perfekt auf eine andere Bindung neu eingestellt werden, ohne dass der Ski neu gebohrt werden muss… einfach die Schrauben lösen, verschieben und wieder anziehen… Damit kann ein Miet Shop seinen Kunden die verschiedenen Bindungen auf dem gleichen Ski testen lassen und damit das optimale individuelle Set up herausfinden…

der Abstand von 6 mm von Loch zu Loch lässt sich aber auch dazu benützen, die Pin Line leicht nach vorne oder nach hinten zu versetzen und damit den Kantendruck auf Skispitze oder – ende persönlich zu beeinflussen … Während der letzten Jahre sind verschiedene neue Bindungen auf den Markt gekommen, welche mit den gleichen Bohrschemata versehen waren waren… aus diesem Grund sind Kombinationen zwischen 75mm und NTN Bindungen möglich geworden… bitte die Pinline Auflistung genau studieren..;-)

Telemark-binding-power-plate

The pin lines are cutted out of each side of the plate… that helps a lot to place it accurate on the ski… you also find a cut in the middle of the plate on top and back for an exact middle position… the 75mm + NTN Telebuddy Plate pin lines are defined from front to the back (point 1 to point 7) as follows:

1. Rottefella NTN Freeride 2012 –

2. 22designs Hammerhead (Outlaw X works on the same template but shift to pinline 4)

2. Kreuzspitze Telealp (only 4 of 6 screws, place the binding on hole schemata 3, marked with 3 points)

3. G3 Targa, G3 Targa Ascent (only 4 screws)

3. Bishop Bomber, G3 Enzo/Enzo R (only 4 of 6 screws), Voilé Switchback

4. Black Diamond O1-O3, O1 6 screw (use only 4 screws) Rottefella NTN Freeride (2012- with plastic base, use template Nr.

5 on surface with only 4 screws), Rottefella Cobra R4 / R8

5. 22designs Axl, 22designs Vice, 22designs Outlaw NTN X(use pin line nr. 6 for the exact Outlaw/NTN position)

7. 7tm

… the NTN/NTTN (New Telemark Tech Norm) Telebuddy Plate pin lines are defined from front to back (point 1 to point 6) as follows:

1.TTS Telemark Tech System

2. Meidjo V2.0

3. 22designs Outlaw NTN X (marked holes on surface = :. or …)

4. Rottefella NTN Freeride (2012 – ) (marked holes on surface = ….)

6. 7TM

6. Bishop BMF-R/3 (use the schemata 3 to mount the binding)

… the little drilling holes on the surface of the plate are helping you to find the corresponding position for each binding… always the top right screw of each binding is marked…

Telemark-binding-stabilisation-plate

75mm+NTN plate with 7 slutholes

Die Pin Lines sind auf der Seite der Platte abgebildet und können damit für eine genaue und schnelle Montage auf dem Ski genützt werden… ebenfalls haben die Platten ein Mittelmarkierung für eine bessere Montage… die Bindungen und Pin Lines für die 75mm + NTN Telebuddy Platte (Markierungen 1 – 7) sind von vorne nach hinten wie folgt zugeordnet:

1. Rottefella NTN (-2012, mit Metall Basisplatte)

2. Hammerhead 22designs (Outlaw X hat gleiches Lochbild aber auf pinline Nr. 4)

2. Kreuzspitze Telealp (die Bindung wird aufs Lochbild 3 geschraubt)

3. G3 Targa, G3 Targa Ascent (nur 4 von 6 Schrauben)

3. Bishop Bomber, G3 Enzo / Enzo R (nur 4 von 6 Schrauben), Voilé Switchback

4. Black Diamond O1-O3, O1 6 Schrauben (nur 4 davon), Rottefella NTN freeride (2012 > mit Plastikbasisplatte, das Lochbild auf der Oberfläche ist aber die Nr. 4 mit nur 4 Schrauben), Rottefella Cobra R4/R8

5. 22designs Axl, 22designs Vice, 22designs Outlaw NTN X (benütze pin line nr. 6 für die Outlaw NTN X)

7. 7tm

… die Reihenfolge der pin lines für die NTN/NTTN Telebuddy Platte (Markierungen 1 – 6) ist wie folgt:

1.TTS Telemark Tech System

2. Meidjo

3. 22designs Outlaw NTN X (Markierung auf der Oberfläche = :.)

4. Rottefella NTN Freeride only 2012> (Markierung auf der Oberfläche = …)

6. 7TM

6. Bishop BMF-R/3 (Bindung auf Lochbild 3 schrauben)

… die kleinen Bohrlöcher Markierungen auf der Oberseite der Platte helfen, das richtige Bohrschema der Bindungen zu finden. Es ist jeweils das obere, rechte Bohrloch markiert…

Telemarkbindung-Stabilisationsplatte

Screws

We use only inox screws…there are torx screws with special flat heads and regular hexagon socket screws… the small sliding nuts for the heel pieces are also out of inox steel… the torsional moment, screw torque is 5-6 Nm… after a first mounting this screws have to be checked for a firm seat… the ski screws are not out of inox steel and should be mounted with any kind of thread security agent… we suggest you not to take a serious one, just an ordinary wood glue so you can unscrew for a new pin line position.

Schrauben

Wir benützen nur rostreie Schrauben… wir haben Spezial Torxschrauben mit sehr tiefem Kopf und Inox Schrauben mit Imbus Zylinderkopf… ebenfalls sind die Flachmuttern aus Edelstahl… das Drehmoment beträgt 5-6 Nm… die Schrauben müssen nach einem ersten Gebrauch kontrolliert und eventuell nachgezogen werden… die Holzschrauben für die Skibefestigung sind nicht aus Edelstahl und es empfiehlt sich, diese mit einem Schrauben Sicherungsmittel (Holzleim) zu montieren und ebenfalls nach zu kontrollieren…
